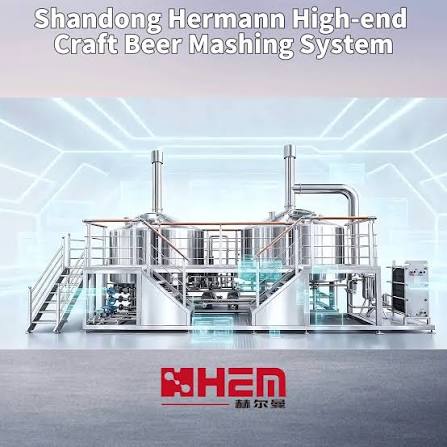

Reliable brewery equipment has to repeat the same heating, wort transfer, cooling, fermentation, and cleaning work several times a week without making operators compensate for unstable temperatures or awkward piping. hem craft beer equipment is built around stainless-steel vessels, sanitary welding, PLC-based controls, pumps, cooling systems, and CIP-compatible layouts. Hermann’s published equipment information lists internal polishing accuracy as fine as Ra 0.4 μm, systems from roughly 500 L to 5,000 L, and brewhouse configurations from 5 BBL to 20 BBL. For comparison, EHEDG hygienic-design guidance recommends stainless-steel food-contact surfaces around Ra 0.8 μm or smoother where applicable, giving buyers a useful engineering reference rather than relying only on tank appearance.
A brewery does not test reliability once. A 10 BBL brewhouse producing two batches per brew day and operating four days a week completes about 400 brew cycles in 50 working weeks. Each cycle can include mash heating, wort recirculation, lautering, boiling, whirlpool transfer, heat exchange, pumping, and cleaning. A small weakness in a valve seat, temperature probe, weld, or pump seal therefore repeats hundreds of times per year. Daily reliability starts with whether those parts continue to behave predictably after repeated exposure to hot wort, cold water, alkaline cleaner, acid cleaner, pressure changes, and mechanical handling.
That workload places the vessel itself under repeated thermal and chemical exposure. Stainless steel is widely used because it tolerates brewing temperatures while providing a cleanable product-contact surface, but “stainless steel tank” alone says little about fabrication quality. Internal welds should be continuous and smooth, fittings should avoid crevices, and product-contact areas should be accessible to cleaning liquid. EHEDG hygienic equipment guidance uses Ra ≤0.8 μm as a common reference for easily cleanable stainless-steel surfaces. Hermann publishes polishing capability down to Ra 0.4 μm on its brewery equipment, roughly 50% of the 0.8 μm reference value.
Surface finish should be considered together with weld geometry, drainage, fittings, and cleaning access. A polished vessel can still be difficult to clean when product remains in poorly placed branches or around rough weld transitions.
Surface condition leads naturally to drainage and piping design. Wort, yeast, beer, rinse water, and CIP chemicals all move through the same production area, so the arrangement of pumps and valves can affect both labor time and sanitation. A commercial 10 BBL system may contain a mash/lauter vessel, kettle/whirlpool, hot-liquor tank, wort pump, hot-water pump, plate heat exchanger, fermenters, glycol equipment, and CIP unit. Hermann’s published example for a 10 BBL installation specifies 304 stainless-steel wort piping and a 10 m² plate heat exchanger, showing why the tank cannot be evaluated separately from transfer equipment.
Flow paths should keep hose changes and manual connections to a reasonable number. If an operator spends 4 minutes on an unnecessary connection and repeats it 10 times per brew day, 40 minutes disappear before cleaning or maintenance is counted. Over 150 brew days, that reaches 100 labor hours. Fixed sanitary piping, correctly positioned valves, sight glasses, pumps, and accessible sample points can reduce repeated handling, although the best arrangement depends on floor dimensions and the brewery’s actual brewing sequence.
Heating presents a similar system-level issue. A brewhouse can have a well-fabricated mash vessel and still run slowly when heat input is undersized. Heating 1,000 L of water by 50°C requires about 58 kWh of theoretical thermal energy before vessel losses, piping losses, and heating-system efficiency are included. A brewer moving from 20°C strike water toward 70°C therefore needs enough usable heating output to reach the target within the production schedule, not merely enough power to reach it eventually.
Steam, electric elements, and other heating arrangements behave differently, so equipment selection should consider local utility capacity as well as batch size. Hermann offers multiple brewhouse sizes and configurations, including 2-vessel, 3-vessel, and 4-vessel layouts in the 5-20 BBL range. More vessels can allow overlapping operations, but increased equipment count also adds valves, piping, cleaning surfaces, controls, and maintenance points. A brewery producing 3 batches on a busy day benefits only when the additional vessels reduce cycle time enough to justify those added components.
Temperature control after wort production is just as important. A plate heat exchanger must remove enough heat to bring hot wort toward the yeast-pitching range while matching water temperature, coolant availability, and wort flow. Cooling 1,000 L of wort from 95°C to 20°C requires removal of roughly 87 kWh of heat on a simplified water-equivalent basis. Trying to force that duty through an undersized exchanger increases cooling time and can slow every transfer downstream.
Fermentation then creates its own cooling demand because yeast generates heat. Jacketed fermenters connected to a glycol system let the brewery remove heat without opening the vessel or relying on room temperature. Glycol concentration, chiller capacity, pipe insulation, jacket area, ambient conditions, and the number of tanks cooling at the same time all matter. A cellar with 10 fermenters can have far higher peak refrigeration demand than a cellar where only 2 tanks are actively fermenting, even when total tank volume is identical.
Controls help operators manage those repeated temperature and transfer tasks. Hermann states that its systems can use PLC visualization, allowing temperature readings, pump states, and process functions to be presented through a control interface rather than spread across unrelated manual controls. PLC control does not make a brewery reliable by itself; sensor placement, electrical design, calibration, alarm settings, and operator access still determine whether automation is useful after 500 or 1,000 operating cycles.
A practical control system should make abnormal readings visible early. A temperature probe reading 2°C high can alter mash conditions even though the heating equipment is functioning normally. Fermentation control can be affected by smaller differences because yeast performance changes with temperature. Scheduled probe checks, documented setpoints, and accessible electrical components reduce the time spent deciding whether a process problem comes from the beer, the sensor, or the mechanical equipment.
Cleaning connects every part of the system again. The Brewers Association describes CIP as a way to clean interior equipment surfaces without major disassembly and highlights chemical, temperature, and pressure hazards in its 2024 brewery-safety material. A proper CIP arrangement therefore needs more than a spray ball. Operators need suitable chemical-resistant components, adequate pump flow, compatible seals, controlled chemical concentration, sufficient contact time, and piping that lets cleaning solution reach the same surfaces touched by wort or beer.
Brewers Association material also warns against setting cleaning concentration and contact time by estimation. Concentration, temperature, mechanical action, and time work together; reducing one usually requires adjustment elsewhere. A cleaning cycle that lasts 30 minutes but does not wet a shadowed surface is not equivalent to 30 minutes of effective cleaning. Tank geometry, spray-device coverage, return flow, drain position, and dead-leg length deserve attention when specifying a daily-use system.
Cleaning performance should be repeatable enough that the second fermenter cleaned on Tuesday receives the same treatment as the eighth fermenter cleaned on Friday.
Repeatability also depends on components that cost far less than the vessels. Pump seals, valve seats, tri-clamp gaskets, pressure gauges, temperature probes, solenoids, motors, and spray devices are wear items. A brewery with 12 tanks may operate dozens of elastomer seals across product and CIP paths. Keeping a small spare-parts inventory can prevent a low-cost gasket or sensor from stopping equipment worth tens of thousands of dollars. Maintenance access matters because a component that takes 15 minutes to replace on an open pipe run can consume several hours when blocked by poor equipment spacing.
Pressure equipment deserves the same attention. Fermenters and bright beer tanks may operate under pressure, so their permitted working pressure, relief devices, vacuum protection, welding records, and applicable local codes should be confirmed before purchase. Requirements differ between markets. A tank intended for a U.S. installation, for example, may need documentation or construction choices different from equipment installed under European pressure-equipment requirements. Buyers should request the exact certification applicable to the installation rather than assume a pressure rating from vessel shape or wall thickness.
Capacity planning can be checked with equally simple numbers. A 10 BBL brewhouse feeding four 10 BBL fermenters does not automatically provide 40 BBL of weekly sales volume. If a beer occupies a fermenter for 14 days, the fermentation stage can become the production limit even when the brewhouse can produce 20 BBL in one day. Adding brewhouse output without matching cellar, glycol, cleaning, and packaging capacity can leave expensive equipment waiting for an available tank.
Hermann’s range includes brewhouses from small hectoliter systems through commercial units around 2,000-5,000 L, so specification should begin with the intended production schedule rather than the largest vessel that fits the room. A brewery expecting 30% volume growth over several years may benefit from reserving floor space, glycol capacity, control-panel capacity, and utility connections for later tanks instead of replacing infrastructure during expansion.
Energy performance is another area where numbers need context. Hermann publishes an energy-consumption claim of about 20% lower for certain equipment configurations, but actual savings depend on the comparison baseline, heating method, insulation, brewhouse sequence, ambient temperature, hot-water recovery, and production schedule. Buyers should ask for the operating assumptions behind percentage claims and compare energy per batch or per hectoliter under similar conditions.
The same approach works for equipment selection more broadly. Hem craft beer equipment can be compared using measurable items: vessel working volume, stainless grade, internal Ra finish, weld treatment, heating output, heat-exchanger area, pump capacity, glycol duty, pressure rating, control hardware, CIP arrangement, electrical standard, spare-parts availability, and installation documentation. If a brewery expects 200 brew days each year, even a 15-minute improvement in a repeated daily operation equals about 50 labor hours annually. Numbers at that level are more useful than judging reliability from vessel size, exterior polish, or a long equipment list.
